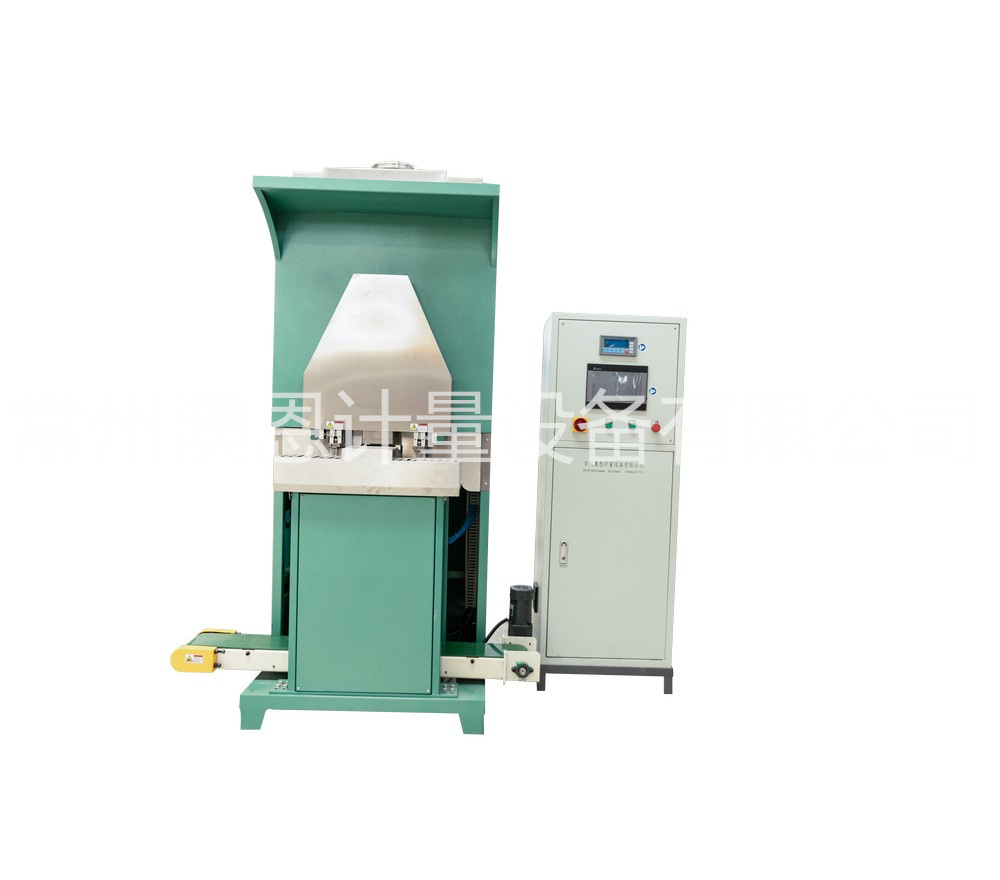

LCS25D-K1-A automatic vacuum heat sealing weighing packaging system

Advantage

The thick and fine double feed valve is adopted to increase the weighing speed while ensuring high accuracy.

The high-precision weight sensor (METTLER TOLEDO/Flinteck) ensures the accuracy and stability of each weighing.

Sturdy scale body, full of materials, designed to be used for more than ten years

Measuring bucket weighing mode, continuous weighing without pause.

The parts in contact with materials are all made of SUS304 stainless steel.

Preferred electro-pneumatic components (knob switch-Schneider, pneumatic components-Airtac).

Fully automatic vacuum heat sealing procedure, only need manual bagging. The self-contained shaping board keeps the packaging flat when vacuuming, so as to facilitate subsequent palletizing.

Hot line：17826648305

Contact

Detail

Manufacture professional products and provide in-place services

Manual weighing packaging is inefficient, the accuracy is not stable, in order to solve the problem of weighing packaging, packaging scale this product came into being. Industrial-grade packaging is particularly important in all types of packaging. In order to facilitate the separation and transportation, industrial packaging mainly formed a polarization, one is FIBC flexible large bags, the other is 25kg small bags. For 25kg packaging, due to the huge differences in material characteristics of different industries, derived from a wide variety of materials bags. Aluminum plastic bags are one of them.

LCS25D-K1-A SEWING SEAL PACKAGING SYSTEM, MAINLY FOR THE NEED TO VACUUM PACKAGING PRODUCTS, SUITABLE FOR NON-BENDING ALUMINUM PLASTIC BAGS / HEAVY PE BAG PACKAGING, CAN ALSO ADD SEWING EQUIPMENT, DOUBLE-LAYER BAGS, SO THAT THE INNER BAG VACUUM, OUTER BAG SEWING EFFECT. WIDELY USED IN THE INDUSTRY, FOOD, CHEMICAL, METALLURGY, PLASTICS AND OTHER INDUSTRIES ARE USED.

the device is divided into three parts:

1. weighing body part: automatic continuous weighing, just manual bag can be. compact weighing controller, simple operating interface, only a small number of parameters can be used, 10 minutes skilled operation.

2. conveyor part: small belt conveyor, the packaged material quickly removed from the station, the next packaging.

3. sealing part: built-in vacuum hot seal integration device, after the material completely fell into the bag to start work, the bag air pumped out, hot seal, thermostat control thermostatic toothed heating strip, to ensure the stability of the sealing effect, long time without leakage.

name	model	the applicable item	suitable for pockets	sealing method	degree of automation	packing speed (pack/hour)
fully automatic vacuum hot seal weighing packaging system	LCS25D-K1-A Gen1	liquid particle material	Aluminum plastic bag Heavy PE bag Paper plastic composite bag	hot seal (inner vacuum)	manual bag, automatic weighing, automatic sealing	80
fully automatic vacuum hot seal weighing packaging system	LCS25D-K1-A Gen2	liquid particle material	Aluminum plastic bag Heavy PE bag Paper plastic composite bag	hot seal (inner vacuum)	fully automatic bag weighing seal	70
vacuum shaping packaging scale	LCS25D-K2-A	liquid particle material	Aluminum foil bag PE bag Inside plastic outer paper double-layer bag	hot seal (internal vacuum) and sewing	manual bag, automatic weighing, auxiliary sealing	120
sewing seal packaging scale	LCS25D-K2-C	liquid particles	weaving bag kraskin paper bag	sewing	manual bag, automatic weighing, auxiliary sealing	160
fold the sealed packaging scale	LCS25D-K2-D	liquid particles	weaving bag kraskin paper bag	folding sewing	manual bag, automatic weighing, auxiliary sealing	160
pneumatic hot seal packaging scale	LCS25D-K2-E	liquid particles	Aluminum plastic bag PE bag Paper plastic composite bag Inside plastic paper double-layer bag	hot seal and sewing	manual bag, automatic weighing, auxiliary sealing	120
roll the hot seal packing scale	LCS25D-K2-E2	liquid particles	PE BAG	continuous heat seal	manual bag, automatic weighing, auxiliary sealing	160
wrap the paper side sealing the packaging scale	LCS25D-K2-F	liquid particles	weaving bag kraskin paper bag	wrap paper and sew	manual bag, automatic weighing, auxiliary sealing	160
sewing seal packaging scale (screw feed)	LCS50D-FH2-C	various types of powders and poorly liquid particles	weaving bag kraskin paper bag	sewing	manual bag, automatic weighing, auxiliary sealing	160
pneumatic hot seal packing scale (screw feed)	LCS50D-FH2-E	various types of powders and poorly liquid particles	Aluminum plastic bag PE bag Paper plastic composite bag Inside plastic paper double-layer bag	hot seal	manual bag, automatic weighing, auxiliary sealing	120
folding sewing seal packaging scale (screw feed)	LCS50D-FH2-D	various types of powders and poorly liquid particles	weaving bag kraskin paper bag	folding sewing	manual bag, automatic weighing, auxiliary sealing	160
self-flowing valvehead scale	LCS25D-KV1	liquid particles	valve pocket		manual bag, automatic weighing, auxiliary sealing	120
self-flowing valvehead scale	LCS25D-KV2	liquid particle hard material	valve pocket		manual bag, automatic weighing, auxiliary sealing	80
screw-type valve-port scale	LCS25D-FVH2	various types of powders and poorly liquid particles	valve pocket		manual bag, automatic weighing, auxiliary sealing	80
tons of packaging scales	LCS1TD-KT2	liquid particles	Tons of bags Space bags FIBC collection bags		manual bag, automatic weighing, automatic decoupling	10
ton packing scale (removable)	LCS1TY-KT2	liquid particles	Tons of bags Space bags FIBC collection bags		manual bag, automatic weighing, automatic decoupling	10
powder tons of packaging	LCS1TD-FH2	loose, non-stick powder	Tons of bags Space bags FIBC collection bags		manual bag, automatic weighing, automatic decoupling	10
two-in-one ton packing scale	LCS25-1TD-KT1	liquid particles	25kg open pocket ton bag Space bag FIBC collection bag		manual bag, automatic weighing, auxiliary sealing	10 160

Product parameter

Manufacture professional products and provide in-place services

product model	vacuum thermal integration quantitative packaging scale
scale body	fixed
weighing range	20-30kg
precision	±50g
weighing speed	≤ 100 packs/hour
there is no metering buffer bucket	yes
sealing method	vacuum heat
feeding method	open self-flowing
pocket material	inner aluminum foil or inner plastic, outer paper bag or woven bag

Sample image

Manufacture professional products and provide in-place services

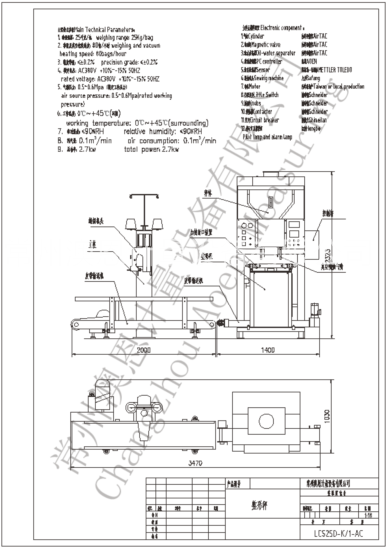

The main technical parameters

Manufacture professional products and provide in-place services

主要技术参数	Main Technical Parameters：
1.称量规格：25千克/包	Weighing range: 25Kg/bag
2.称量速度：≤180包/小时	Weighing speed: ≤180bags/hour
3.精度等级：≤±0.2%	Precision grade: ≤±0.2%
4.额定电压：AC380V +10%~-15% 50HZ	Rated voltage: AC380V +10%~-15% 50HZ
5.气源压力：0.5~0.6Mpa	Air source pressure: 0.5~0.6Mpa
6.工作温度：0℃~+45℃(环境)	Working temperature: 0℃~+45℃(surrounding)
7.相对湿度：≤90％RH	Relative humidity: ≤90％RH
8.耗气量：0.1m³/min	Air consumption: 0.05m³/min
总功率：2.7kw	total power：2.7kw

Main configuration

Manufacture professional products and provide in-place services

major component configurations	Electronic component ：
1. cylinder	taiwan's yadek
2. solenoid valve	taiwan's yadek
3. oil and water separator	taiwan's yadek
4. weighing controller	aon
5. load cell	mettler-toledo
6. vacuum heat-up machine	aon
7. sewing machine	eight sides
8. motor	taiwan or real estate
9. travel switch	schneider
10. knob	schneider
11. contactors	schneider
12. open	schmelan
13. indicators and alarm lights	red wave

Product display

Manufacture professional products and provide in-place services

LCD25D-K1-A

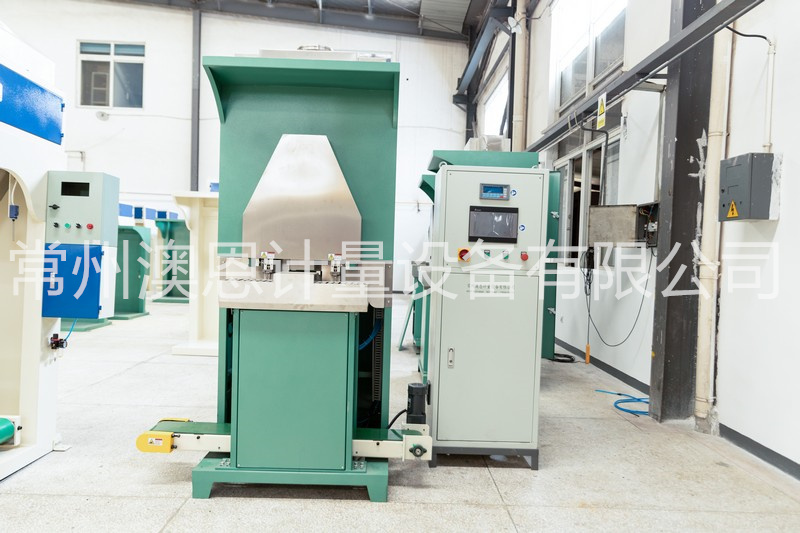

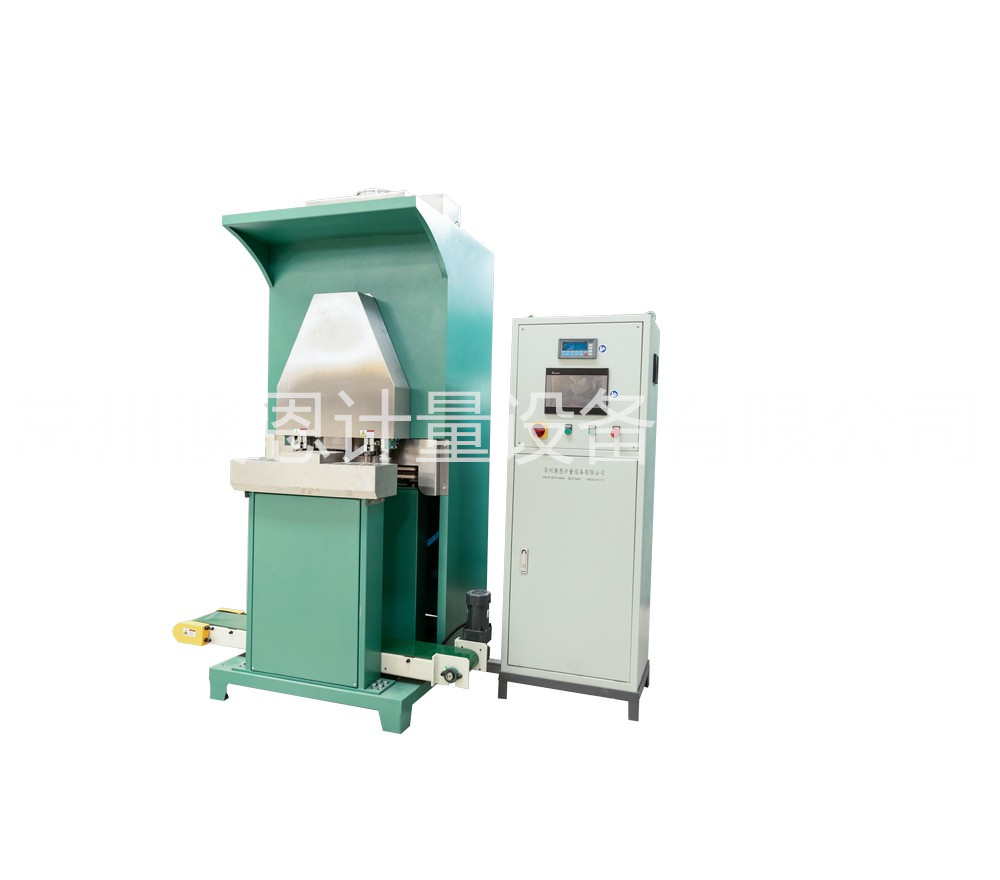

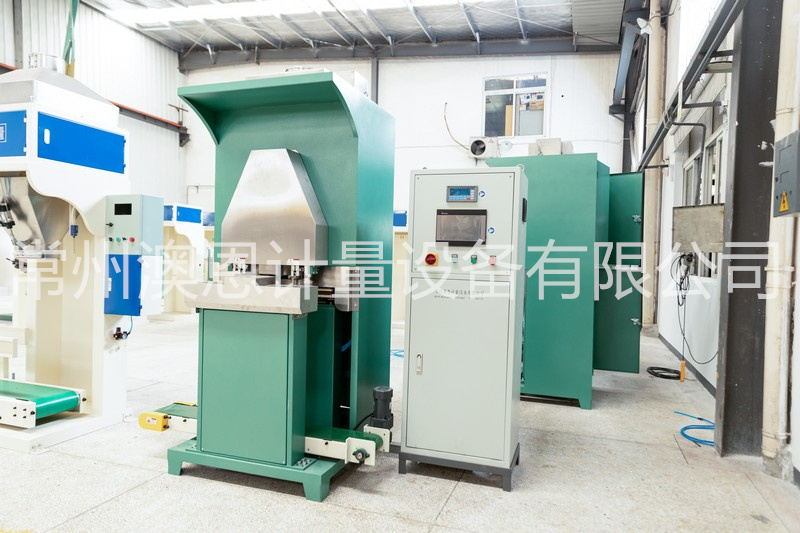

Vacuum heat sealing packaging scale all-in-one machine LCS25D-K1- second generation
Silicone vacuum chuck High vacuum to ensure stable opening

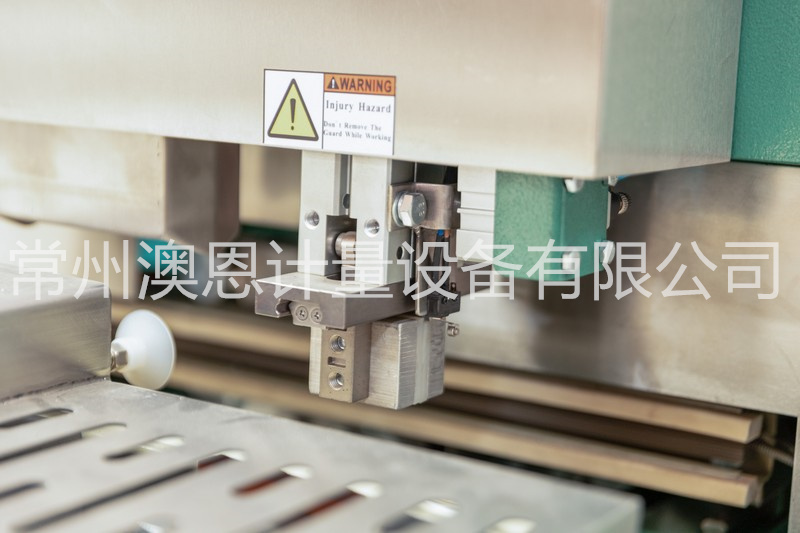

Clamping finger cylinder, stable and safe

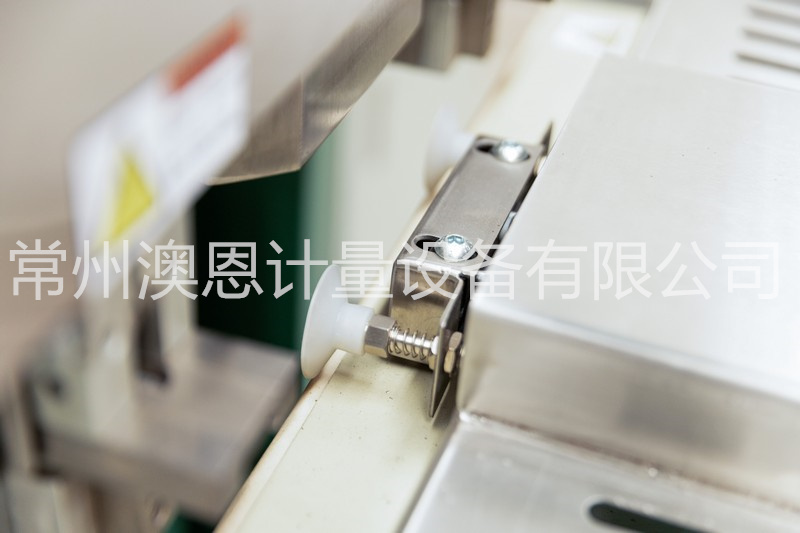

Micro switches on both sides, bag loading detection to prevent misoperation
Friendly man-machine operation interface, one-key activation of panel buttons
Automatic packaging process, saving time and effort
